HR2652 Combination Hammer with Self Dust Collection

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_empty_space][vc_single_image image="37761" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 26 mm (1") 2.2 J Combination Hammer with HEPA Self Dust Collection, SDS-PLUS Bits
• Filter Cleaning Mechanism for More Efficient Drilling
• HEPA filter removes particles with an efficiency rating of 99.75%
• Easy to adjust position of dust collecting port
• Easy-to-grip handle

Standard Equipment

• Side grip, Depth Gauge, Sealing Cap

Download File

• HR2652_Manual
• HR2652_Leaflet

• Continuous rating Input800W
• Impact energyEPTA-Procedure 05/2009: 2.2 J
• CapacityConcrete : 26mm (1")
• Steel : 13mm (1/2")
• Wood : 32mm (1-1/4")
• No load speed (rpm)0 - 1,200
• Dimensions (L x W x H) 604 x 89 x 260 mm (23-3/4 x 3-1/2 x 10-1/4")
• Net weight 3 - 4.3 kg (6.7 - 9.4 lbs.)
• Power supply cord2.5m (8.2ft)

CW003G Cordless Cooler and Warmer Box

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="37014" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax / 18V / 12V / 24V XGT LXT Cordless Cooler & Warmer Box
• Powered by 4 sources: 40Vmax XGT Li-Ion battery, 18V LXT Li-Ion battery (two in parallel or one), 12V/24V DC (cigar socket), AC
• Compressor type cooling system provides excellent cooling capacity
• Cooling capacity: -18 to 10°C, with 7 inside temperature settings (-18 / -15 / -10 / -5 / 0 / 5 / 10°C)
• Warming capacity: 7 inside temperature settings (30 / 35 / 40 / 45 / 50 / 55 / 60°C)
• Compact design, 7L capacity
• IPX4 water resistance when powered by battery

Standard Equipment

• Shoulder Belt, Cigar Socket Cable

Standard Accessories

• CW003GZ: Bare Tool (Battery and charger sold separately)

Download Files

• CW003G_Manual
• CW003G_Leaflet

• Capacity7 L (1.8 gal)
• Cooling Capacity-18 / -15 / -10 / -5 / 0 / 5 / 10°C (0 / 5 / 15 / 25 / 30 / 40 / 50°F)
• Warming Capacity30 / 35 / 40 / 45 / 50 / 55 / 60°C (85 / 95 / 105 / 115 / 120 / 130 / 140°F)
• Cord LengthCigar Socket Cable: 2.5 m (8.2 ft)
• Dimensions (L x W x H)456 x 245 x 308 mm (18 x 9-5/8 x 12-1/8")
• Net weight7.9 - 9.4 kg (17.4 - 20.7 lbs.)

DVP181 Cordless Vacuum Pump

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="29053" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• High power for 20 HP professional-use refrigeration case and large air conditioner
• Long run time of 60 minutes
• Compression type: Oil-sealed rotary vane type, Dual-stage compression
• Check valve: Electromagnetic valve
• Cordless vacuum pump for air purge during installation of room air conditioner
• Removes all air from refrigerant tubing
• Easy to carry with a compact and lightweight body

Standard Equipment

• Vacuum Pump Oil, Adapter

Standard Accessories

• DVP181ZK: Bare Tool, Carrying Case (Battery and charger sold separately)

Download File

• DVP181_Manual
• DVP181_Leaflet

• Flow rate113 L/min
• Ultimate vacuum3 Pa
• Motor speed3,200 min¹
• Oil capacity300 mL
• Inlet port5/16 / 3/8"
• Dimensions (L x W x H) 383 x 193 x 210 mm (15-1/8 x 7-5/8 x 8-1/4")
• Net weight 8.1 - 8.2 kg (17.9 - 18.1 lbs.)

CS002G Cordless Metal Cutter

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_empty_space][vc_single_image image="36467" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• For single-pass cutting of 65mm metal studs, 2-1/2" equal angle steel bars and lip channel steel bars
• Built-in twin LED lights with afterglow function for better illumination and more accurate work
• Electric brake allows you to move on to the next cutting immediately
• Soft start reduces recoil at startup
• Anti-restart function engineered

Standard Equipment

• TCT saw blade, Hex wrench, Safety goggles (country-specific), Guide rule (country-specific), Battery, Charger

Standard Accessories

• CS002GZ: Bare Tool (Battery and charger sold separately)

Download File

• CS002G_Manual
• CS002G_Leaflet

• Wheel diameter185 mm (7-1/4")
• Max Cutting Capacity0°: 67 mm (2-5/8")
• No load speed (rpm) 3,500
• Vibration Level Cutting Metal: 2.5 m/s² or less
• Dimensions (L x W x H) 350 x 232 x 270 mm (13-3/4 x 9-1/8 x 10-5/8")
• Net weight 4.2 - 5.4 kg (9.3 - 11.9 lbs.)

CL003G Cordless Cleaner

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_gallery interval="3" images="36577,36576" img_size="medium" onclick=""][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax XGT BL Brushless Cordless 4-Speed Cleaner with LED Light
• Increased compactness achieved by a new cyclone unit integrated onto the cleaner's main body
• For increased cleaning efficiency, the integrated cyclone unit is positioned above the extension pipe
• Cyclonic system separates large dust particles from fine dust particles
• Low noise
• Easy filter setting; Filter can be fixed with a single push

Standard Equipment

• Capacity Cloth dust bag: 250 mL
• Max air flow 1.0 m³/min
• Continuous use(minutes) w/ BL4025, Mode 1 / 2 / 3 / 4: 80 / 40 / 25 / 16 min
• Max. sealed suction 20 kPa (2,000 mmH₂O)
• Dimensionsw/ Pipe & Nozzle, w/ BL4020 / BL4025: 1,106 x 113 x 177 mm (43-1/2 x 4-7/16 x 7")
• w/ Pipe & Nozzle, w/ BL4040: 1,121 x 113 x 177 mm (44-1/4 x 4-7/16 x 7")
• Net weight1.9 - 2.5 kg (4.2 - 5.5 lbs.)

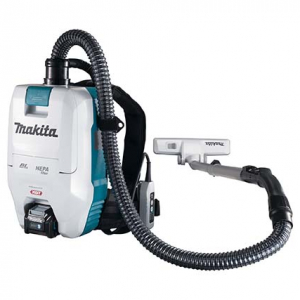

VC008G Cordless Backpack Vacuum Cleaner

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36565" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Improved operation switch allows to check battery remaining capacity and operation mode
• Comfortable backpack harness for reduced heat built-up
• Optional washable shoulder and back pad
• HEPA Filter is used as the main filter to capture very fine particles effectively
• Main target application: Building maintenance

Standard Equipment

• Floor Nozzle, Hose, Hose Band, Nozzle, Telescopic pipe assembly, Bent Pipe, Switching nozzle, Free Nozzle, Dust Bag, Front Cuff (country-specific), Battery, Charger

Standard Accessories

• VC008GZ04: Bare Tool (Battery and charger sold separately)

Download File

• VC008G_Manual
• VC008G_Leaflet

• CapacityCloth Dust Bag: 1.5 L
• Max Air Flow2.4 m³/min
• Max Sealed Suction18 kPa
• Suction Powerw/ Hose 32-1.0 (Max): 180 W
• Dimensions 233 x 151 x 376 mm (9-1/8 x 5-15/16 x 14-3/4”)
• Net weight 4.3 - 4.7 kg (9.5 - 10.4 lbs.)

GA042G Cordless Angle Grinder

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36543" img_size="medium"][vc_empty_space][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

• Wheel diameter100 mm (4”)
• Hole Diameter16 mm (5/8”)
• No load speed (rpm) 3,000 - 8,500
• Dimensions (L x W x H) w/ BL4040: 433 x 117 x 162 mm (17 x 4-5/8 x 6-3/8”)
• Net weight 3.0 - 5.4 kg (6.6 - 11.9 lbs.)

HR008G Cordless Combination Hammer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36582" img_size="medium"][vc_empty_space][vc_column_text]           [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

• Impact Energy 3.9 J
• CapacitySteel: 13 mm (1/2")
• Wood: 32 mm (1-1/4")
• Core Bit: 80 mm (3-1/8")
• Diamond Core Bit (Dry Type): 80 mm (3-1/8")
• Blows per minute (BPM)0 - 4,500
• No load speed (rpm)0 - 840
• Chuck Capacity1.5 - 13 mm (1/16 - 1/2")
• Dimensions (L x W x H) w/ BL4040: 422 x 103 x 242 mm (16-5/8 x 4-1/16 x 9-1/2")
• Net weight 5.2 - 6.2 kg (11.5 - 13.7 lbs.)

DUR194 Cordless Grass Trimmer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34722" img_size="medium"][vc_empty_space][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

• Cutting WidthMetal Blade: 200 mm (7-7/8")
• Nylon Cutting Head: 280 mm (11")
• Plastic Blade: 230 mm (9")
• No load speed (rpm) High / Low: 6,000 / 4,500
• Spindle size M10 x 1.25 LH
• Dimensionsw/o Cutting tool, w/ BL1830B / BL1840B / BL1850B / BL1860B: 1,580 x 288 x 236 mm (62-1/4 x 11-3/8 x 9-1/4")
• Net weight2.6 - 2.9 kg (5.7 - 6.4 lbs.)

UA001G Cordless Pole Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34713" img_size="medium"][vc_empty_space][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

• Guide Bar Length250 mm (10")
• Recommended Guide Bar Length250 - 300 mm (10 - 12")
• Chain Speed0 - 20 m/s (0 - 1,200 m/min) (0 - 3,940 FPM)
• Oil Tank Capacity160 mL
• Dimensions (L x W x H) w/o Guide Bar, w/ BL4020/ BL4025/ BL4040 or w/o Battery: 2,230 x 156 x 187 mm (88 x 6-1/8 x 7-3/8")
• Net weight 6.0 - 7.2 kg (13.2 - 15.9 lbs.)

UC012G Cordless Chain Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34701" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax XGT BL Brushless Cordless 40 cm (16") Chain Saw
• Excellent work efficiency
• BL motor delivers 0-25.5 m/s (0-1,530 m/min) (0-5,020 FPM) chain speed for fast cutting
• Main power switch with auto power-off function for battery saving and avoiding unintentional start up
• 80TXL saw chain for increased cutting efficiency
• WetGuard/ IPX4-compatible

Standard Equipment

• Saw chain, Guide bar, Guide Bar Cover, Chain oil (country-specific), Round file (country-specific), Wrench, Battery, Charger, Safety goggles (country-specific)

Standard Accessories

• UC012GT101(RT): 8.0Ah Batteries (BL4080F)
• UC012GZ: Bare Tool (Battery and charger sold separately)

Download File

• UC012G_Manual
• UC012G_Leaflet

• Guide bar length 400 mm (16")
• Chain speed0 - 25.5 m/s (0 - 1,530 m/min) (0 - 5,020 FPM)
• Max Output1,600 W
• Dimensions (L x W x H) w/o Guide Bar: 446 x 233 x 274 mm (17-1/2 x 9-1/8 x 10-3/4")
• Net weight 6.0 - 6.5 kg (13.2 - 14.4 lbs.)

UC003G Cordless Chain Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34696" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Lightweight for reduced operator fatigue
• Outer Rotor BL motor direct-drive system
• Main power switch with auto power-off function for battery saving and avoiding unintentional start up
• Large oil filling port with view window allows operator to easily add and check bar oil level
• WetGuard/IPX4; Excellent water-resistant performance
• Chain speed: Max 24.8 m/s

Standard Equipment

• Saw chain, Guide bar, Guide Bar Cover, Oil supply (country-specific), Round file (country-specific), Box Wrench, Battery, Charger

Standard Accessories

• UC003GZ01: Bare Tool (Battery and charger sold separately)

Download File

• UC003G_Manual
• UC003G_Leaflet

• Guide bar length 300 mm (12")
• Chain gauze 1.1 mm (0.043")
• Chain speed0 - 24.8 m/s (0 - 1,490 m/min) (0 - 4,880 FPM)
• Max Output1,400 W
• Dimensions (L x W x H) 266 x 194 x 227 mm (10-1/2 x 7-5/8 x 8-15/16")
• Net weight 3.8 - 4.7 kg (8.4 - 10.4 lbs.)

ML006G Cordless Flashlight

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34691" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax XGT Li-Ion 18 LED Flashlight, 500 Lumens
• Extra Bright 18 LED Flashlight Provides 500 Lumens
• Flashlight head folds up and down with 7 positive stops and rotates left to right for multiple lighting angles
• Large retractable hook allows to hang the flashlight from steel pipes up to 50 mm
• Up to 40 hours of continuous illumination in medium mode with BL4040

Standard Accessories

• ML006G: Bare Tool (Battery and charger sold separately)

Download Files

• ML006G_Manual
• ML006G_Leaflet

• Run Time (hrs) Up to: 82
• Luminous Flux100 - 500
• Net weight1.1 - 1.7 kg (2.4 - 3.8 lbs.)

KT001G Cordless Kettle

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36607" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Powered by two 40Vmax XGT Li-Ion batteries in parallel, one 40Vmax XGT Li-Ion battery or PDC1200 Portable power pack
• Water can be boiled without fire even at job sites where AC socket is not available
• Equipped with an anti-spill lock button to minimize accidental spilling of hot water
• Dual layer structure of inner stainless layer and outer plastic layer provides high heat retention while keeping Kettle surface cool
• Easy to carry around
• Boil-dry protection
• Auto shut-off after boiling with warning buzzer

Standard Accessories

• KT001GZ: Bare Tool (Battery and charger sold separately)

Download Files

• KT001G_Manual
• KT001G_Leaflet

• Current20A
• Water Tank Capacity800 mL
• Dimensions (L x W x H)w/o Battery: 233 x 322 x 307 mm (9-1/8 x 12-5/8 x 12-1/8")
• Net weight2.8 - 5.9 kg (6.2 - 13.0 lbs.)

PT001G Cordless Pin Nailer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36646" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Developed mainly for interior nailing operations where a high quality finish is required
• Use of BL motor and redesigned driving spring
• Low reaction force mechanism enables easier long pin nailing and high-quality finish
• Main application: Interior nailing' Baseboard/ Crown molding/ Panel, etc.
• 40Vmax XGT battery and BL motor for high power
• Improved driver durability achieved

Standard Equipment

• Nose adapter, Safety goggles, Belt clip, Hex wrench, Battery, Charger

Standard Accessories

• PT001GD201(RD2K): Fast Charger (DC40RA), 2.5Ah Battery (BL4025)
• PT001GZ: Bare Tool (Battery and charger sold separately)

Download File

• PT001G_Manual
• PT001G_Leaflet

• CapacityLength: 15, 18, 25, 30, 35 mm (5/8, 11/16, 1, 1-3/16, 1-3/8")
• Dia.: 0.6 mm
• Gauge: 23 Ga
• Magazine Capacity120
• Dimensions (L x W x H) 218 x 86 x 226 mm (8-5/8 x 3-3/8 x 8-7/8")
• Net weight 2.4 - 3.0 kg (5.3 - 6.6 lbs.)

CE001G Cordless Power Cutter

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34661" img_size="medium"][vc_column_text]       [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax X2 (80Vmax) XGT BL AFT Cordless 355 mm (14") Power Cutter, Electric Brake
• Achieves a cutting depth of 127mm and a high cutting speed
• Low vibration mechanism
• Max cutting depth: 127mm (5"); 8-10 rebars of ø16 mm can be cut together in one shot
• WetGuard/ IPX4-compatible; High water-resistance allows to operate the machine even if it is wet with water
• With Extreme Protection Technology (XPT)

Standard Equipment

• Wrench, Coupling Sleeve, Ring, Battery, Charger

Standard Accessories

• CE001GZ01: Bare Tool (Battery and charger sold separately)

Download File

• CE001G_Manual
• CE001G_Leaflet

• Wheel diameter355 mm (14")
• Wheel Hole Diameter25.4 mm (1")
• Max Cutting Capacity127 mm (5")
• No load speed (rpm)5,300
• Dimensions (L x W x H)786 x 272 x 433 mm (31 x 10-3/4 x 17")
• Net weight12.3 - 14.1 kg (27.1 - 31.1 lbs.)

VC004GL Cordless Vacuum Cleaner

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36640" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• The same high power as corded vacuum cleaners
• Powered by 40Vmax XGT Li-Ion battery (two in parallel)
• Variable suction power control dial (stepless)
• Improving cooling efficiency against more heat generation from electrical parts due to the increased output power
• Auto-start Wireless System (AWS) connects to power tool with Bluetooth

Standard Equipment

• VC004GL_Manual
• VC004GL_Leaflet

• Continuous Use (min.)w/ BL4050F at Dial 1: 220
• w/ BL4050F at Dial 5: 28
• Max. air flow1.8 m³/min
• Max. sealed suction23.0kPa
• Suction Power205W
• Dimensions 366 x 334 x 475 mm (14-3/8 x 13-1/8 x 18-3/4")
• Net weight 8.6 - 11.7 kg (19.0 - 25.8 lbs.)

RT001G Cordless Trimmer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36593" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Soft brake prevents work materials damaged
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaner with Bluetooth
• With Extreme Protection Technology (XPT)
• Aluminum base for higher durability and accuracy
• Constant speed control maintains constant speed under load

Standard Equipment

• Collet Cone, Trimmer Base Assembly, Straight Guide Assembly, Templet Guide, Wrench, Trimmer Guide, Dust nozzle, Tilt Base Assembly, Offset Base Assembly, Plunge Base Assembly, Battery, Charger

Standard Accessories

• RT001GM202(RM2J): Fast Charger (DC40RA), 2X 4.0Ah Battery (BL4040)
• RT001GZ04: Bare Tool (Battery and charger sold separately)

Download File

• RT001G_Manual
• RT001G_Leaflet

• No load speed10,000-31,000
• Plunge Capacityw/ Trimmer Base: 0 - 40 mm (0 - 1-9/16")
• w/ Plunge Base: 0 - 35 mm (0 - 1-3/8")
• Dimensions124 x 89 x 197 mm (4-7/8 x 3-1/2 x 7-3/4")
• Net weight2.2 - 2.5 kg (4.9 - 5.5 lbs.)

KP001G Cordless Planer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36559" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Our 40Vmax XGT platform and increased rotation speed of BL motor
• Smooth planing similar or better than corded models
• Increased cutting depth and shiplapping depth
• Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
• With extreme Protection Technology (XPT)
• 2-blade cutter head with double edge carbide blades for added performance and smooth finish

Standard Equipment

• Planer blade, Blade gauge, Guide rule, Depth guide, Socket wrench, Sharpening holder assembly (country-specific), Wireless unit (country-specific), Battery, Charger

Standard Accessories

• KP001GZ: Bare Tool (Battery and charger sold separately)

Download File

• KP001G_Manual
• KP001G_Leaflet

• Planing width82mm (3-1/4”)
• Planing depth4 mm (5/32")
• Shiplapping 25 mm (1")
• Blade size25 mm (1")
• No load speed (rpm)15,000
• Dimensions 330 x 156 x 166 mm (13 x 6-1/8 x 6-1/2")
• Net weight3.7 - 4.9 kg (8.2 - 10.8 lbs.)

DJV184 Cordless Jig Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36592" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• High cutting performance thanks to our 18V LXT platform
• Better cutting efficiency
• Compact and lightweight for reduced operator fatigue
• BL motor delivers high power
• Variable speed control

Standard Equipment

• Jig saw blade (country-specific), Hex wrench, Cover plate, Dust nozzle (country-specific), Dust cover (country-specific), Battery, Charger

Standard Accessories

• DJV184RTJ:Rapid Charger (DC18RC), 2X18V - 5.0Ah Batteries (BL1850B), Makpac
• DJV184Z: Bare Tool (Battery and charger sold separately)

Download File

• DJV184_Manual
• DJV184_Leaflet

• Capacity Wood: 135 mm (5-5/16")
• Mild steel: 10 mm (3/8")
• Aluminum: 20 mm (25/32")
• Length of stroke 23 mm (7/8")
• Strokes per minute (spm) 0 - 3,000
• Dimensions (L x W x H)259 x 77 x 205 mm (10-1/4 x 3 x 8-1/8")
• Net weight 2.1 - 2.4 kg (4.6 - 5.3 lbs.)

HS009G Cordless Circular Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34623" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Lightweight & high power
• Redesigned large size BL motor and 40Vmax XGT Li-Ion battery
• Improved maneuverability
• Large cutting capacity (85 mm at 90°) and bevel capacity (-1° - 60°) with a positive stop at 45°
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth

Standard Equipment

• TCT Saw Blade, Sub Base, Hex wrench, Battery, Charger

Standard Accessories

• HS009GZ: Bare Tool (Battery and charger sold separately)

Download File

• HS009G_Manual
• HS009G_Leaflet

• Wheel diameter235 mm (9-1/4")
• Max Cutting Capacity0°: 85 mm (3-3/8")
• 45°: 61 mm (2-3/8")
• 60°: 44 mm (1-3/4")
• No load speed (rpm)4,000
• Dimensions413 x 196 x 316 mm (16-1/4 x 7-3/4 x 12-1/2")
• Net weight 5.1 - 5.7 kg (11.2 - 12.6 lbs.)

SP001G Cordless Plunge Cut Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36590" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
• Constant speed control provides consistent surface finish
• BL motor delivers 4,900 RPM for fast cutting and ripping
• Variable speed dial control for optimum performance in a variety of materials
• Electronic soft start feature for smooth start-ups

Standard Equipment

• TCT Saw Blade, Hex wrench, Wireless unit (country-specific), Battery, Charger

Standard Accessories

• SP001GZ: Bare Tool (Battery and charger sold separately)

Download File

• SP001G_Manual
• SP001G_Leaflet

• Wheel diameter165 mm (6-1/2")
• Max Cutting Capacity0°: 56 mm (2-3/16")
• 45°: 40 mm (1-9/16")
• 48°: 38 mm (1-1/2")
• No load speed (rpm)2,500 - 4,900
• Dimensions347 x 221 x 271 mm (13-5/8 x 8-3/4 x 10-5/8")
• Net weight 4.4 - 5.0 kg (9.7 - 11.0 lbs.)

PB002G Cordless Portable Band Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_empty_space][vc_single_image image="36586" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax XGT battery and BL motor for high speed
• Cutting efficiency similar or superior to competing models achieved by BL motor and increased blade speed
• Constant speed control minimizes the reduction in blade speed to provide stable cutting
• Variable speed control by dial; An optimum cutting speed can be selected to suit application
• Electric brake for maximum productivity

Standard Equipment

• Band Saw Blade, Hex wrench, Battery, Charger

Standard Accessories

• PB002GM201(RM2K): Fast Charger (DC40RA), 4.0Ah Battery (BL4040)
• PB002GZ: Bare Tool (Battery and charger sold separately)

Download File

• PB002G_Manual
• PB002G_Leaflet

• Capacity Round: 127 mm (5")
• Square: 127 x 127 mm (5 x 5")
• Blade speed 0 - 3.2 m/min (0 - 630 ft/min)
• Dimensions (L x W x H) 510 x 218 x 314 mm (20 x 8-5/8 x 12-3/8")
• Net weight 6.6 - 7.8 kg (14.6 - 17.2 lbs.)

JR002G Cordless Recipro Saw

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36554" img_size="medium"][vc_empty_space][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

• Capacity Pipe: 130mm (5-1/8”)
• Wood: 255 mm (10")
• Length of stroke 32mm (1-1/4”)
• Strokes per minute (spm) 0 - 3,000
• Dimensions (L x W x H) w/ BL4020 / BL4025: 436 x 97 x 250 mm (17-1/8 x 3-13/16 x 9-7/8")
• w/ BL4040: 451 x 97 x 256 mm (17-3/4 x 3-13/16 x 10-1/8")
• Net weight 4.6 - 5.8 kg (10.1 - 12.8 lbs.)

UH014G Cordless Hedge Trimmer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="34337" img_size="medium"][vc_column_text]     [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 40Vmax XGT BL Brushless Cordless 75 cm (29-1/2″) Hedge Trimmer
• Increased cutting speed and torque for smooth and efficient cutting
• Lightweight design
• 40Vmax XGT Li-Ion battery and BL motor provide high power and excellent cutting performance
• WetGuard; Excellent water-resistant performance

Standard Equipment

• Blade Cover, Safety goggles (country-specific), Chip Receiver, Battery, Charger

Standard Accessories

• UH014GM101(RM): 6.0Ah Batteries (BL1860B)
• UH014GZ: Bare Tool (Battery and charger sold separately)

Download File

• UH014G_Manual
• UH014G_Leaflet

• Blade Length750 mm (29-1/2")
• Max Cutting Capacity18 mm (11/16")
• Strokes Per Minute (SPM)High / Mid / Low: 5,000 / 3,600 / 2,000
• Dimensions (L x W x H)w/ BL4020 / BL4025: 1,225 x 270 x 135 mm (48-1/4 x 10-5/8 x 5-5/16")
• Net weight4.0 - 4.7 kg (8.8 - 10.4 lbs.)

DHG181 Cordless Heat Gun

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36642" img_size="medium"][vc_column_text] [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1" use_theme_fonts="yes"][vc_column_text]

About the Product

• Max 550 degrees Celsius air temperature for a wide range of cordless works
• Air temperature can be adjusted from ambient temperature to 550 degrees Celsius
• Max air flow of 200 L/min
• Quick release mechanism for easy Nozzle replacement
• Up to 30 minutes of continuous run time with 18V LXT 6.0Ah Battery BL1860B (battery not included)

Standard Equipment

• Glass protection nozzle, Wide slot nozzle, Reflector nozzle, Reduction nozzle

Standard Accessories

• DHG181ZK: Bare Tool, Carrying Case (Battery and charger sold separately)

Download File

• DHG181_Manual
• DHG181_Leaflet

• Air Temperature (°C)550°C
• Air Flow (L/min)Stage 1: 120 L/min
• Stage 2: 200 L/min
• Dimensionsw/o Battery: 173 x 79 x 208 mm (6-3/16 x 3-1/8 x 8-3/16")
• w/ BL1815N / BL1820B: 173 x 79 x 237 mm (6-3/16 x 3-1/8 x 9-3/8")
• w/ BL1830B / BL1840B / BL1850B / BL1860B: 173 x 79 x 255 mm (6-3/16 x 3-1/8 x 10")
• Net weight 1.0 - 1.4 kg (2.2 - 3.1 lbs.)

DTD172 Cordless Impact Driver

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36638" img_size="medium"][vc_column_text]       [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 18V LXT BL Brushless Cordless Wood/Bolt/T-Mode 180 N·m Impact Driver
• Slimmer tool head that enables easy screw-driving in tight corners or confined spaces
• Slimmer tool body due to smaller controller circuit
• Light mode enables to use as a handy light on dark job sites
• Anti-bit wobbling structure; Two ball bearings are used to securely hold the anvil for reduced bit wobbling

Standard Equipment

• Phillips Bit, Belt Clip, Battery, Charger

Standard Accessories

• DTD172RFJ: Rapid Charger (DC18RC), 2X18V-3.0Ah Batteries (BL1830B), Makpac
• DTD172RTE: Rapid Charger (DC18RC), 2X18V - 5.0Ah Batteries (BL1850B)
• DTD172Z: Bare Tool (Battery and charger sold separately)

Download File

• DTD172_Manual
• DTD172_Leaflet

• CapacityMachine Screw: M4 - M8 (5/32 - 5/16")
• Standard Bolt: M5 - M16 (3/16 - 5/8")
• High Strength Bolt: M5 - M14 (3/16 - 9/16")
• Coarse thread (in length): 22 - 125 mm (7/8 - 4-7/8")
• Wood (Auger Bit): 24 mm (15/16")
• Hex Shank6.35 mm (1/4")
• No Load Speed (rpm)Max / Hard / Mid / Soft / Wood / Bolt / T (1) / T (2) mode:: 0 - 3,600 / 3,200 / 2,100 / 1,100 / 1,800 / 3,600 / 2,900 / 3,600
• Impacts Per Minute (IPM)Max / Hard / Mid / Soft / Wood / Bolt / T (1) / T (2) mode:: 0 - 3,800 / 3,600 / 2,600 / 1,100 / 3,800 / 3,800 / N/A / 2,600
• Max. fastening torque180 N·m (1,590 in.lbs.)
• Fastening TorqueHard / Mid / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
• Max Output290 W
• Dimensions (L x W x H)w/o Battery: 114 x 81 x 189 mm (4-1/2 x 3-3/16 x 7-7/16")
• w/ BL1815N / BL1820B: 114 x 81 x 218 mm (4-1/2 x 3-3/16 x 8-5/8")
• w/ BL1830B / BL1840B / BL1850B / BL1860B: 114 x 81 x 236 mm (4-1/2 x 3-3/16 x 9-1/4")
• Net weight 1.2 - 1.5 kg (2.6 - 3.3 lbs.)

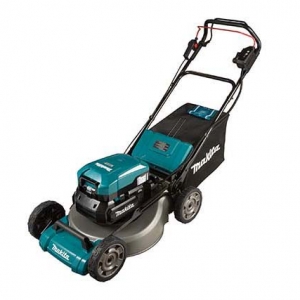

LM002J Cordless Lawn Mower

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="32688" img_size="medium"][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• 64Vmax BL Brushless Cordless 53 cm（21″) 4 in 1 Lawn Mower
• High power cordless lawn mower powered by 64Vmax (57.6V) Li-Ion battery
• Lightweight design with a plastic cutting deck for increased maneuverability
• Plastic cutting deck allows for lightweight design to increase maneuverability
• 3 cutting modes (Normal/ Soft no-load/ Noise reduction)
• Normal mode; Suitable for works that require power

Standard Equipment

• Blade, Mulching Plug, Box Wrench, Rod

Standard Accessories

• LM002JM101

Download File

• LM002J_Manual
• LM002J_Leaflet

• Cutting Width534 mm (21”)
• Cutting Height20 - 100 mm (13/16 - 3-15/16”)
• No Load Speed (RPM)2,300 - 2,800
• Actual Mowing Area 1,600 m²
• Continuous Use (min.) 39
• Dimensions1,710 - 1,800 x 585 x 985 - 1,115 mm
• Net weight25.7 - 27.6 kg (56.7 - 60.8 lbs.)

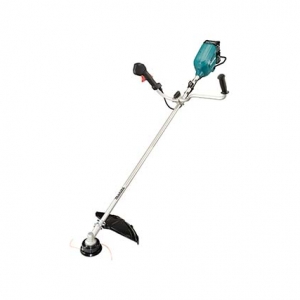

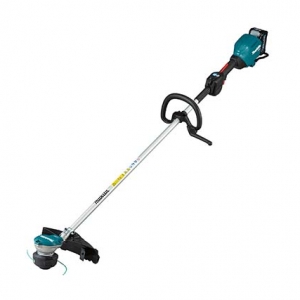

UR012G Cordless Grass Trimmer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36758" img_size="medium"][vc_empty_space][vc_column_text]   [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

HR007G Cordless Combination Hammer

[vc_row full_width="stretch_row"][vc_column width="1/3"][vc_single_image image="36584" img_size="medium"][vc_column_text]       [/vc_column_text][/vc_column][vc_column width="2/3"][vc_row_inner][vc_column_inner][vc_custom_heading source="post_title" font_container="tag:h1|text_align:left|color:%2313a1b1"][vc_column_text]

About the Product

• BL motor delivers high power and excellent performance
• Active Feedback sensing Technology (AFT) for kickback reduction
• Auto-start Wireless System (AWS) connects to compatible vacuum cleaner with Bluetooth
• Depth gauge for increased drilling consistency
• Variable speed trigger allows operator to adjust speed based on materials or application

Standard Equipment

• Side Grip, Depth Gauge, Battery, Charger, Cloth, Grease vessel, Air Duct Cap

Standard Accessories

• HR007GM201(RM2J): Fast Charger (DC40RA), 4.0Ah Battery (BL4040)
• HR007GZ: Bare Tool (Battery and charger sold separately)

Download File

• HR007G_Manual
• HR007G_Leaflet

• Impact Energy EPTA-Procedure 05/2009: 21.4 J
• CapacityMasonry: 28mm (1-1/8”)
• Steel: 13mm (1/2”)
• Wood: 32mm (1-1/4”)
• Core Bit: 54mm (1-1/4”)
• Diamond Core Bit: 2-9/16 mm (65")
• Blows per minute (BPM)0 - 5,000
• No load speed (rpm)0 - 980
• Dimensions (L x W x H) w/ BL4020 / BL4025: 458 x 101 x 234 mm
• w/ BL4040: 473 x 101 x 240 mm
• Net weight 3.8 - 4.8 kg (8.4 - 10.6 lbs.)
