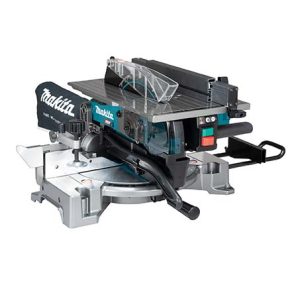

LH001GZ Cordless Table Top Miter Saw
About the Product
- 260mm (10-1/4″) cordless table top miter saw powered by a 40Vmax XGT Li-Ion battery
- The LED lamp casts a shadow of the blade onto the workpiece, clearly indicating the cutting path as the blade lowers
- Miter capacity of 45° left and 52° right, with positive stops at 0°, 15°, 22.5°, 30°, and 45°
- Auto-start Wireless System (AWS) enables control via Bluetooth for on-demand dust extraction
- This model works not only as a cordless miter saw but also, using its top table and rip fence, as a cordless table saw—delivering two tools in one.
Standard Accessories and Equipment
- TCT saw blade, Rip fence, Push stick, Blade cover, Hex wrench, Ring, Set plate, Vertical vise, Holder, Dust bag
- LH001GZ: Bare Tool (Battery and charger sold separately)
Download File
- Wheel Diameter255, 260 mm (10, 10-1/4″)
- Hole diameter15.88, 25.4, 30 mm (5/8, 1, 1-3/16″)
- Bevel range0° – Left : 45°
- Miter rangeLeft: 45 ° / Right: 52 °
- Cutting capacityBevel 0° / Miter 0°: 69 x 130 mm (2-3/4 x 5-1/8″), 93 x 95 mm (3-5/8 x 3-3/4″)
- Bevel 0° / Miter 45°LR: 69 x 85 mm (2-3/4 x 3-3/8″), 93 x 67 mm (3-5/8 x 2-5/8″)
- Bevel 45°L / Miter 0°: 35 x 130 mm (1-3/8 x 5-1/8″), 53 x 95 mm (2-1/16 x 3-3/4″)
- Bevel 45°L / Miter 45°L: 35 x 65 mm (1-3/8 x 2-9/16″), 49 x 42 mm (1-15/16 x 1-5/8″)
- Bevel 45°L / Miter 45°R: 35 x 91 mm (1-3/8 x 3-5/8″), 49 x 67 mm (1-15/16 x 2-5/8″)
- No load speed (rpm)4,300 minˉ¹
- Dimensions 545 x 476 x 585 mm (21-1/2 x 18-3/4 x 23″)
- Net weight 14.8 – 16.0 kg (32.6 – 35.3 lbs.)
